Ods 1511 series
Ods 1511 series
Add:2020-8-23 12:21:00
Abstract:Oscillating knife cutting machine is the latest developed high speed, high precision and high quality cutting machine of Jinan King Rabbit Technology Development Co., Ltd. The machine equips with the advanced Panasonic motor, which ensure the high speed a
Oscillating knife cutting machine is the latest developed high speed, high precision and high quality cutting machine of Jinan King Rabbit Technology Development Co., Ltd. The machine equips with the advanced Panasonic motor, which ensure the high speed and accurate locating function. It has an outstanding performance among all the similar types of product. We have specs of 1511/2516/2030 and applicable for Carton package cutting, leather and furniture cutting, auto interior cutting and advertising sign cutting. Special use oscillating knife is also offering to meet all our clients’ various demands.
Features:
1.Multi-function cutting head, applicable for various materials’ cutting
2.strong power vacuum adsorption
3.compatible with kinds of CAD software
4.Produced in less batches which can save time and work force
Features:
1.Multi-function cutting head, applicable for various materials’ cutting
2.strong power vacuum adsorption
3.compatible with kinds of CAD software
4.Produced in less batches which can save time and work force
5.anti-collision built-in automatic sensor
Technical parameters/model
Ods1511
Ods2516
Ods3020

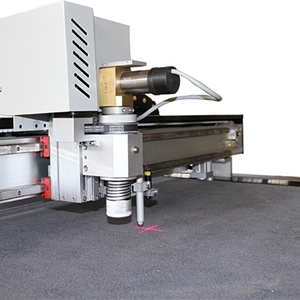

Multi-function cutting head
Oscillating knife,cursor,drawring,automatical feeding
Tool configuration
Various kinds of cutting tools, pen, cross positioning laser
Security configuration
High sensitivity infrared ray interaction (selected)
Movement speed
1200mm/s Maximum 1200mm/s
Cutting speed
Maximum 800mm/s (set according to different cutting materials)
Cutting material
PP Film, paperboard, PU leather,Carpet
Cutting thickness
Maximum 5-mm (set according to different materials)
Material fixing method
High power vacuum absorption and intellectual partition
Repeated positioning accuracy
Maximum 0.01mm
Mechanical Precision
Maximum 0.02mm
Drive system
Steel wire synchronous belt , AC servo motor, linear guideway
Control system
digit RISC core cpu + large scale programmable logic array
Operating mode
operation platform + data output control software
(operation platform can be divided into connected and separated parts)
Display mode
Chinese and English liquid crystal touch screen
Data transmission method
Ethernet
Instruction system
HPGL compatible format
Buffer capacity
Standard 4GB
Rated power
11KW
12KW
14KW
Maximum working dimensions
1500*1100
2500*1600
3050*2050
Rated voltage
380V
